High-Accuracy Measurement & Intelligent Performance

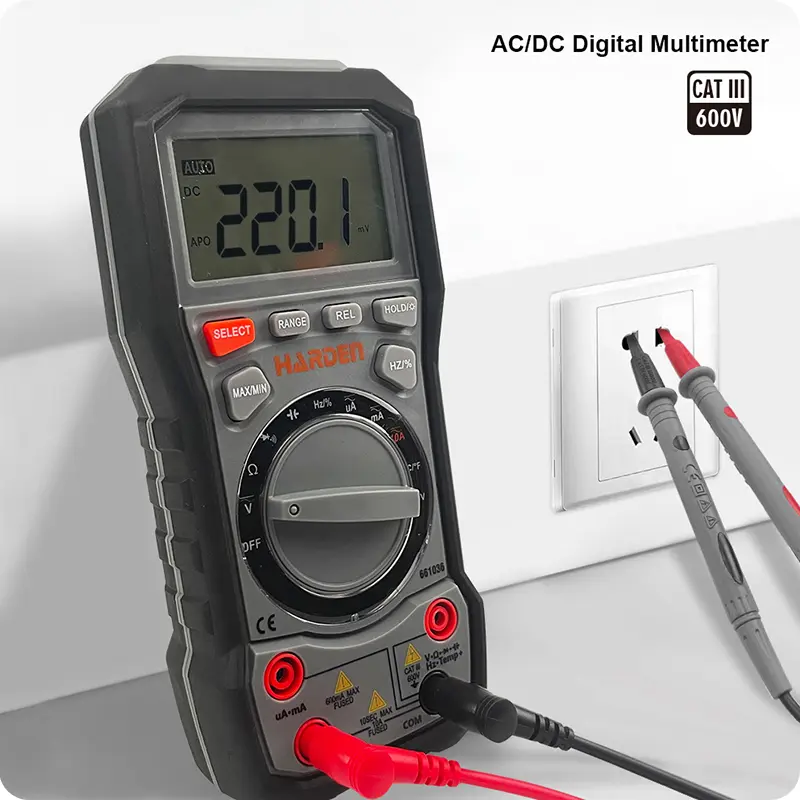

This AC/DC Digital Multimeter delivers dependable precision with 6000 counts resolution, allowing users to perform detailed electrical analysis with confidence. It supports DC and AC voltage and current, resistance, capacitance, frequency, duty cycle, and temperature measurements. Designed to measure any waveform voltage accurately, it is suitable for both simple troubleshooting and advanced diagnostics.

Comprehensive Measurement Ranges

DC Voltage: 600mV / 6V / 60V / 600V / 1000V
AC Voltage: 6V / 60V / 600V / 750V
DC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A
AC Current: 600µA / 6000µA / 60mA / 600mA / 6A / 10A
Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
Capacitance: 10nF – 100µF
Frequency: 9.999Hz / 99.99Hz / 9.999kHz / 99.99kHz / 999.9kHz / 5MHz
Duty Cycle: 10% – 90%
Temperature: -20°C to 750°C / -4°F to 1400°F

Advanced Safety & User Protection

Built to meet professional safety standards, this multimeter is CE approved and rated CAT III 600V. The full-range intelligent anti-burn function, overload protection, and low battery indication ensure safe operation during demanding tasks. The NCV (Non-Contact Voltage) function enables fast voltage detection without direct contact, improving both safety and efficiency.

User-Friendly Design for Field & Lab Work

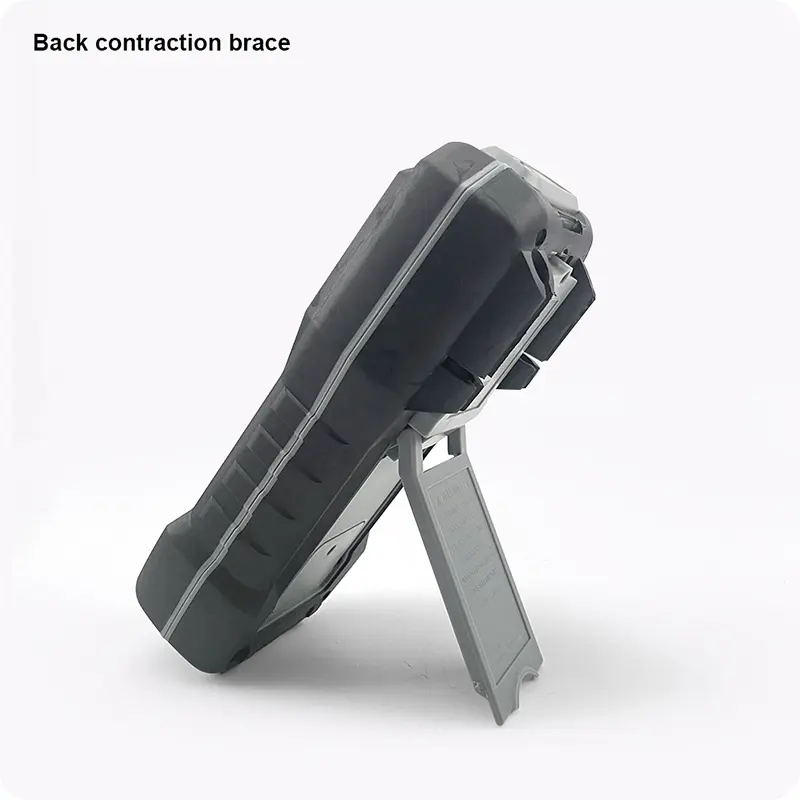

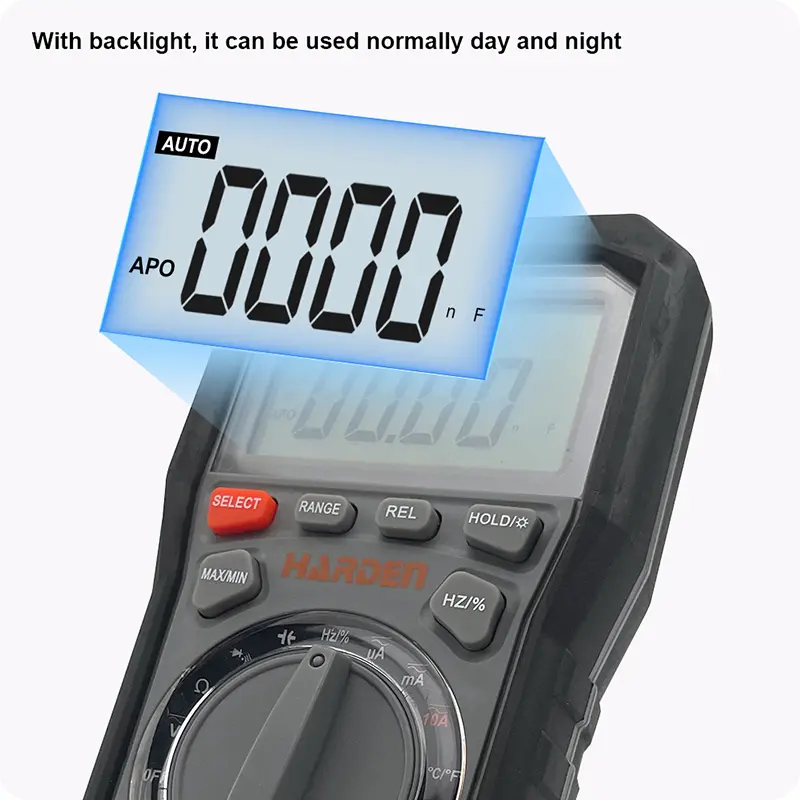

A large backlit LCD guarantees clear visibility in dark or confined spaces, while the integrated flashlight function enhances usability during on-site inspections. The data-hold mode, maximum/minimum value recording, and relative value measurement simplify analysis and troubleshooting. A rubber protective cover and back contraction brace provide durability and comfortable handling in industrial and field environments.

Power Efficiency & Accessories

Battery: 2 × 1.5V AAA

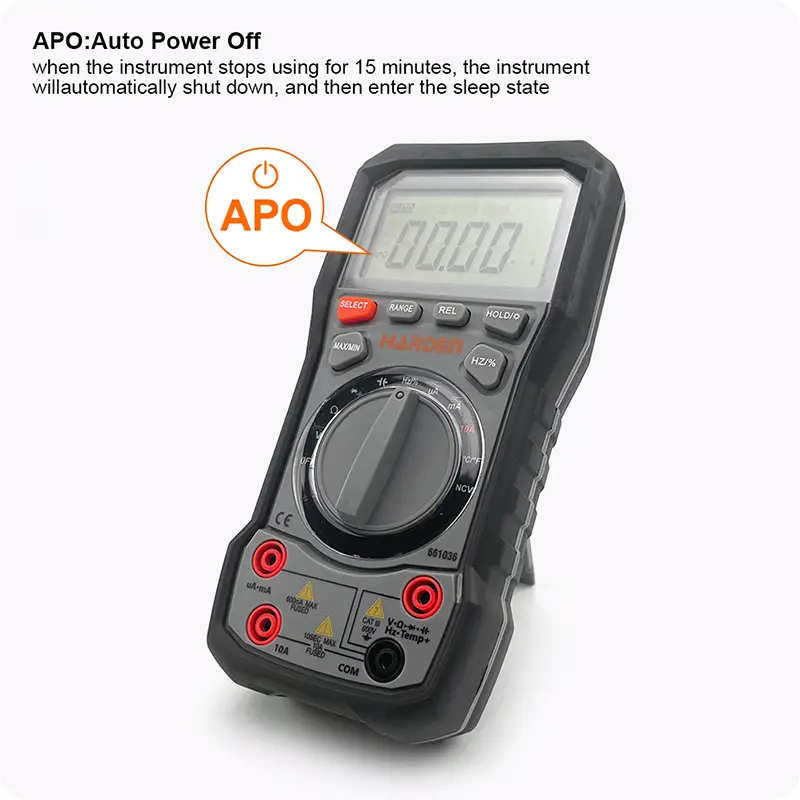

Auto Power-Off: Automatically shuts down after 15 minutes of inactivity to conserve battery life

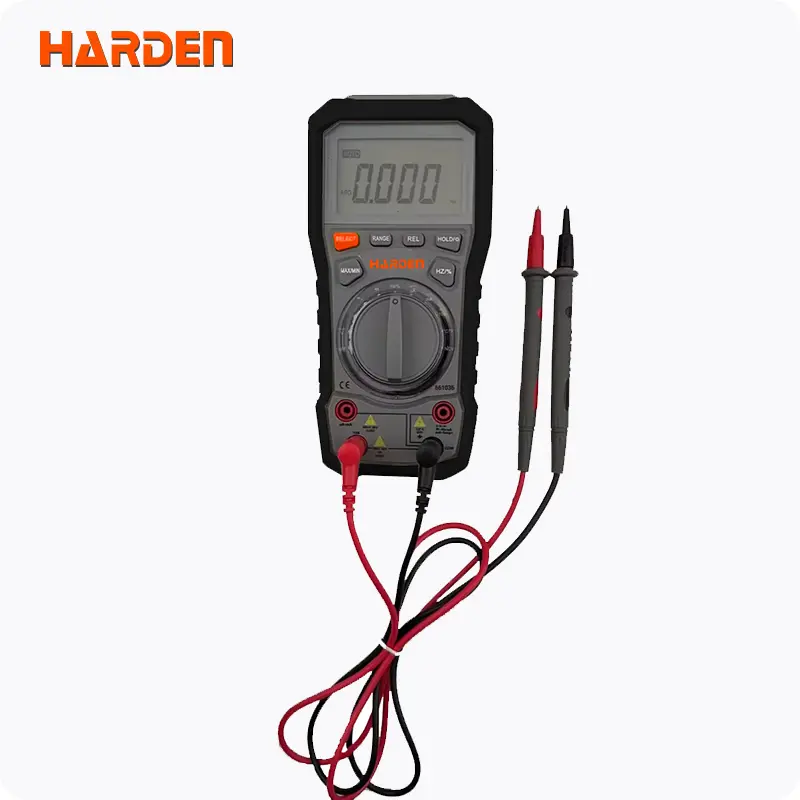

Test Leads: Red & black plug-in leads included
Packaging: Supplied in a color box

Common Applications

Industrial Automation: Monitoring PLCs, motors, and machinery
Electronics R&D: Circuit testing, PCB validation, and embedded systems
Energy Management: Solar, wind, battery testing, and EV diagnostics
Education & Training: Ideal for engineering labs and technical institutes
Field Service: HVAC, automotive, telecom, and general electrical troubleshooting
