Brio Cross Pressure Kit | Pump Controller | Italtecnica
Buy the Italtecnica Brio Cross pump controller from Damam Hardware UAE. Features smart automatic start/stop, reliable dry-run protection, compact design, and easy, hassle-free installation.
Reliable Automatic Pump Control System

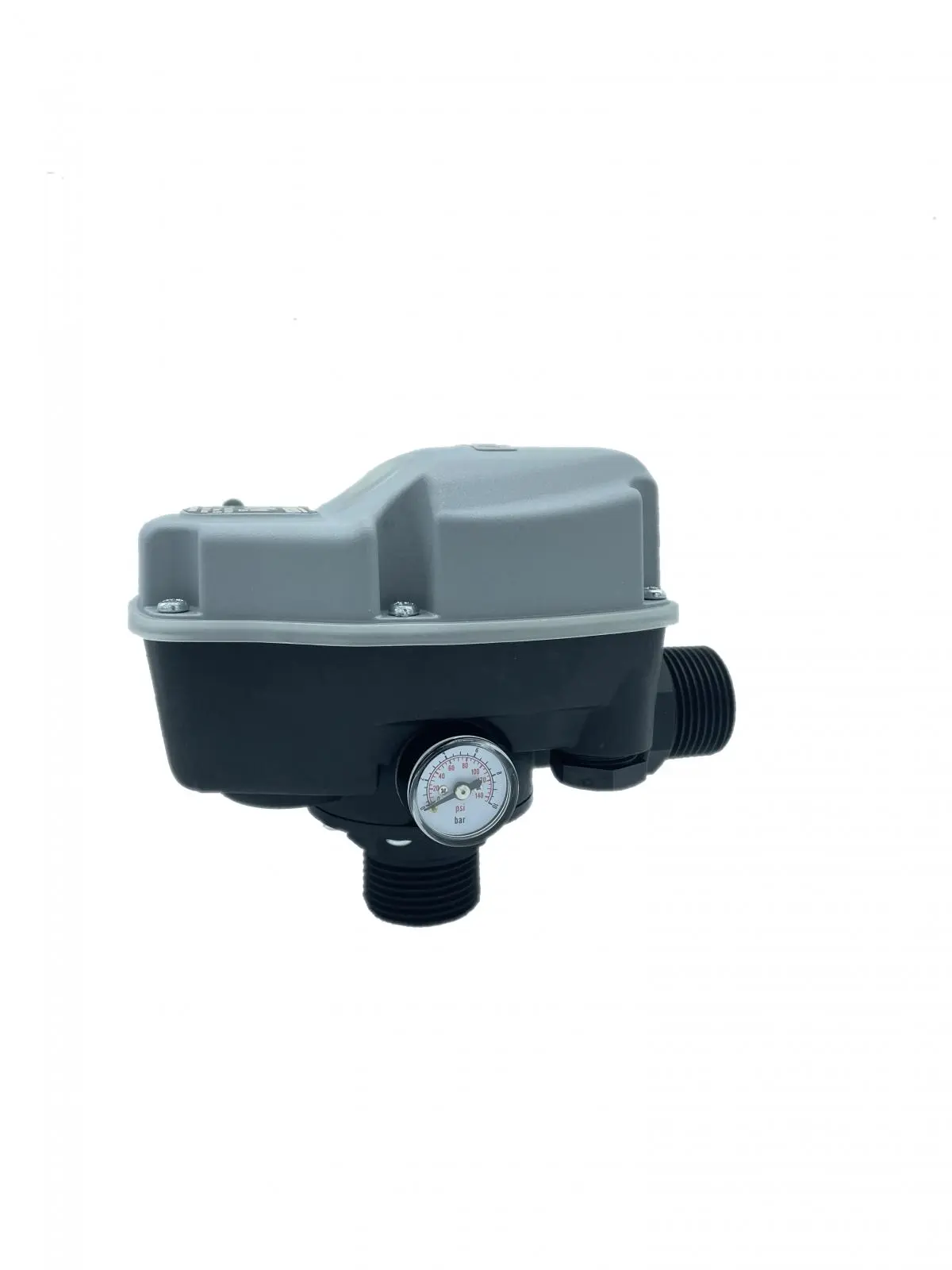

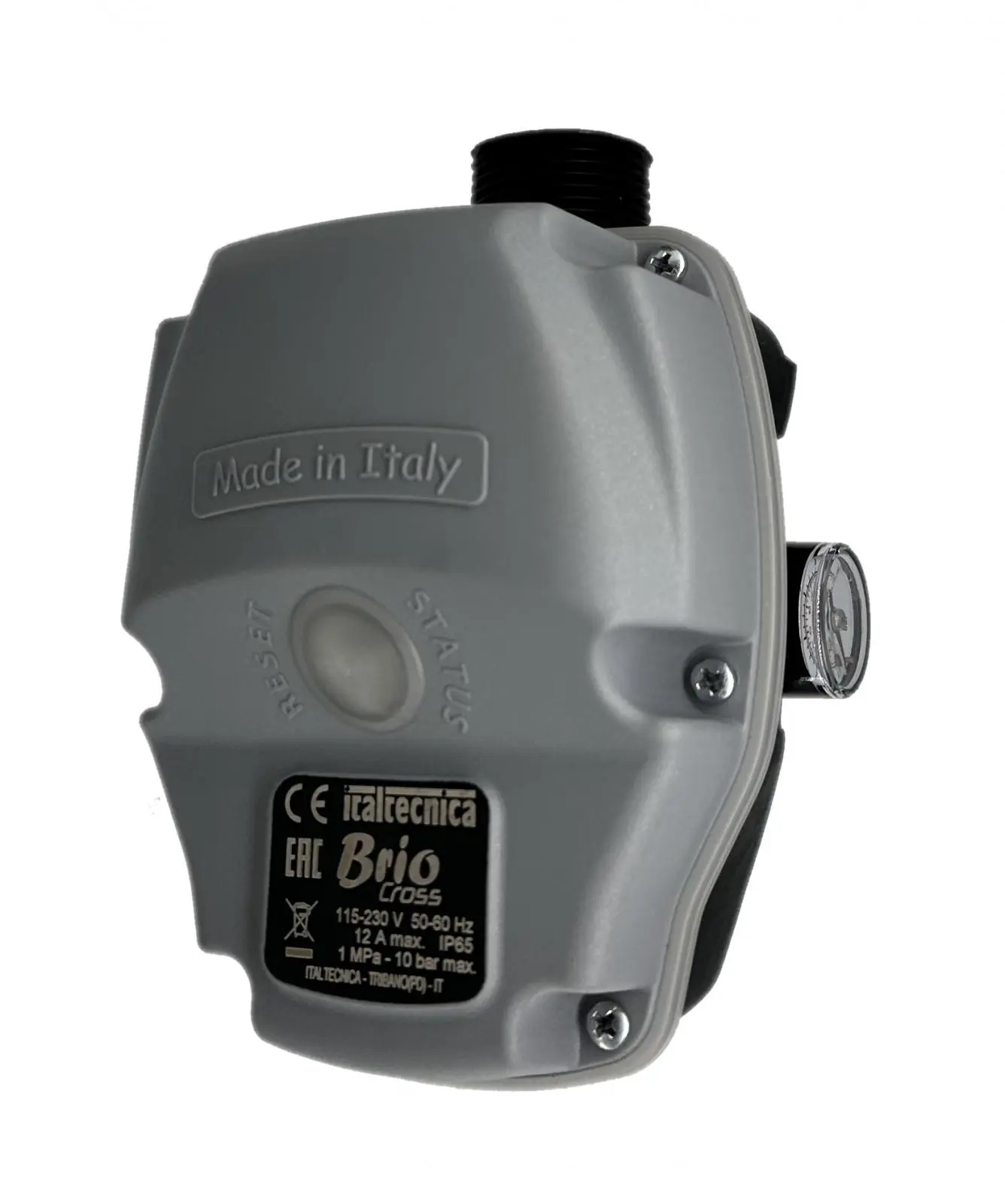

The Brio Cross Italtecnica Pressure Kit is a compact, intelligent solution for automating single-phase water pumps. It activates the pump when water is needed and shuts it off when flow stops, ensuring efficient water use and stable pressure.
Built-In Safety & Smart Features
Equipped with dry-run protection, smart auto-reset, and anti-seize functionality, this device prevents damage and extends pump lifespan. The integrated pressure gauge and check valve enable easy monitoring and maintenance.
Compact Design & Easy Installation
With 90-degree hydraulic connections and rotating nuts, installation is quick and convenient, even in tight spaces. Suitable for submersible and external pumps, it supports multiple configurations, including bypass systems.
Specifications
- Brand: ITALTECNICA
- Power Supply: 115–230 Vac ±15%
- Max Current: 12A (2 HP)
- Starting pressure: 1–3.5 bar
- Max Pressure: 10 bar
- Protection: IP65
- Fluid Temp: 5°C – 55°C
- Connection Size: 1″
Key Features
- Automatic pump start/stop system
- Dry run protection with auto reset
- Anti-seize motor protection
- Adjustable starting pressure
- Integrated pressure gauge
- Compact and durable design
- No maintenance required
- Easy installation with fittings
